Extruded aluminum housing provides superior heat conduction. Housing is designed with deep fins for maximum heat dissipation with natural or forced air convection.

Gold anodized finish for maximum resistance to environmental conditions. Special thermosetting compound with high thermal conductivity. Winding designed to give maximum core coverage and uniformity for even heat dissipation.

RB10 Wirewound Aluminum Housed Axial Resistor
RB10 Series – 12 Watt

Fixed power wirewound aluminum housed resistor

MIL-PRF-18546
G Type
Rated Power (W) Resistance Range (Ohm) Voltage Limit (V) Temp. rise
with heatsink (℃/W)
Weight (g)
RE65 12 0.01-10K 265 5.1 6
RB25 Wirewound Aluminum Housed Axial Resistor
RB25 Series – 25 Watt

Fixed power wirewound aluminum housed resistor

MIL-PRF-18546
G Type
Rated Power (W) Resistance Range (Ohm) Voltage Limit (V) Temp. rise
with heatsink (℃/W)
Weight (g)
RE70 25 0.01-18K 550 3 14
rb series resistors
RB50 Series – 50 Watt

Fixed power wirewound aluminum housed resistor

MIL-PRF-18546
G Type
Rated Power (W) Resistance Range (Ohm) Voltage Limit (V) Temp. rise
with heatsink (℃/W)
Weight (g)
RE75 50 0.01-68K 1250 1.9 35

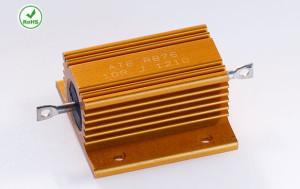

RB75 Wirewound Aluminum Housed Axial Resistor
RB75 Series – 75 Watt

Fixed power wirewound aluminum housed resistor

MIL-PRF-18546
G Type
Rated Power (W) Resistance Range (Ohm) Voltage Limit (V) Temp. rise
with heatsink (℃/W)
Weight (g)
—- 75 0.01-50K 1400 1.1 85
rb101 resistor
RB101 Series – 100 Watt

Fixed power wirewound aluminum housed resistor

MIL-PRF-18546
G Type
Rated Power (W) Resistance Range (Ohm) Voltage Limit (V) Temp. rise
with heatsink (℃/W)
Weight (g)
—- 100 0.01-70K 1900 1 115
RB150 Wirewound Aluminum Housed Axial Resistor
RB150 Series – 150 Watt

Fixed power wirewound aluminum housed resistor

MIL-PRF-18546
G Type
Rated Power (W) Resistance Range (Ohm) Voltage Limit (V) Temp. rise
with heatsink (℃/W)
Weight (g)
—- 150 0.01-100K 2500 1 165

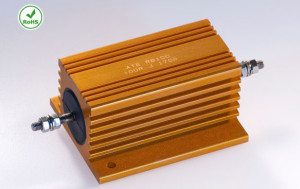

RB100 Wirewound Aluminum Housed Axial Resistor
RB100 Series – 150 Watt

Fixed power wirewound aluminum housed resistor

MIL-PRF-18546
G Type
Rated Power (W) Resistance Range (Ohm) Voltage Limit (V) Temp. rise
with heatsink (℃/W)
Weight (g)
RE77 150 0.01-100K 1900 0.84 500
rb250 resistor
RB250 Series – 250 Watt

Fixed power wirewound aluminum housed resistor

MIL-PRF-18546
G Type
Rated Power (W) Resistance Range (Ohm) Voltage Limit (V) Temp. rise
with heatsink (℃/W)
Weight (g)
RE80 250 0.01-120K 2300 0.66 900
