420VAC to 5000VAC up to 2000μF

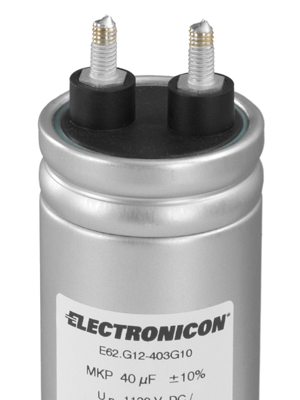

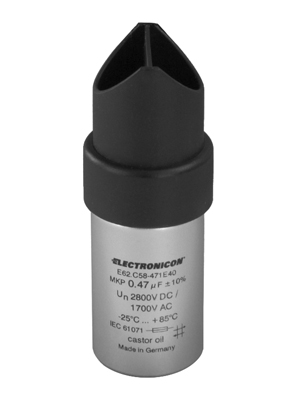

E62 capacitor

Thanks to their high AC-voltage load capacity and outstanding suitability for high rms and surge currents, E62 series capacitors are widely used in power electronics applications.

Filled with vegetable based liquid resin, these capacitors have a high specific ratio of capacitance to volume. Very good self-healing characteristics and the integrated overpressure protection (break-action mechanism) ensure safe operation and controlled disconnection in the event of overload or failure at the end of operating life. All designs with metal lid can be made available in same size and design as E65 with gas-filling.

Function: Power factor correction, rapid discharge, filtering, commutation

Application:

  • filter or smoothing capacitors in drives, EMC-filters, sinus filters, wind power and photo voltaics
  • (inverters/rectifiers), induction heating equipment, uninterruptible power supplies (UPS)
  • buffer circuit capacitors in traction/drives, inverters/rectifiers
  • discharge capacitors in flash generators, lasers, high power radio transmitters, test equipment,
  • spot welding equipment
  • commutation of thyristors
  • resonating capacitors in audio frequency filters or broad band filters



Approvals: UL
Voltage reversal: allowed
Climatic Classes: C
Filler: E62: castor oil
Internal safety device: BAM
Standard lifetime >150,000hrs
